Global commands

The sensitivity to the duty cycle was measured for the global commands: reset, sync and calib-strobe. For each of this commands an internal pad was probed.

We observed that the commands work within two ranges of the duty cycle separated by a gap where the chips are not responding to the command.

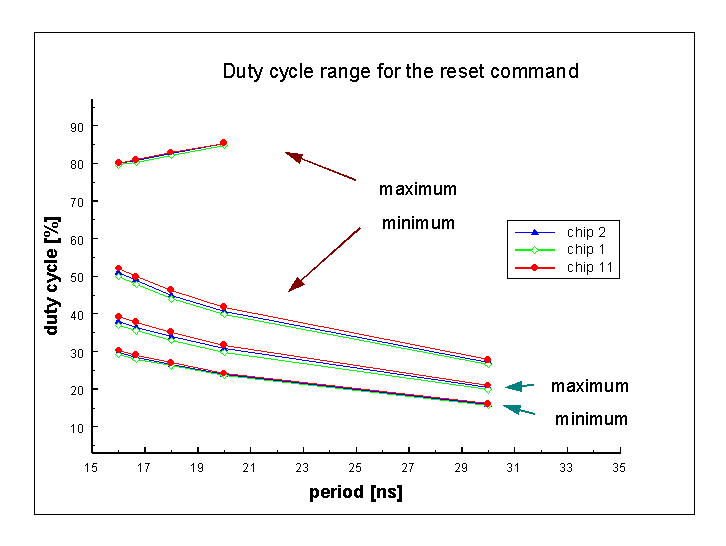

The following figure shows the operating ranges for the reset command. The ranges for the sync and calib-strobe are very similar to the one for the reset command.
